Specifications
| Manufacturer | Sonitron |
| SKU | SCI535A5F2 |
| Color | Grey |
Documentation
| Sonitron SVC/SRA-Series | Download |

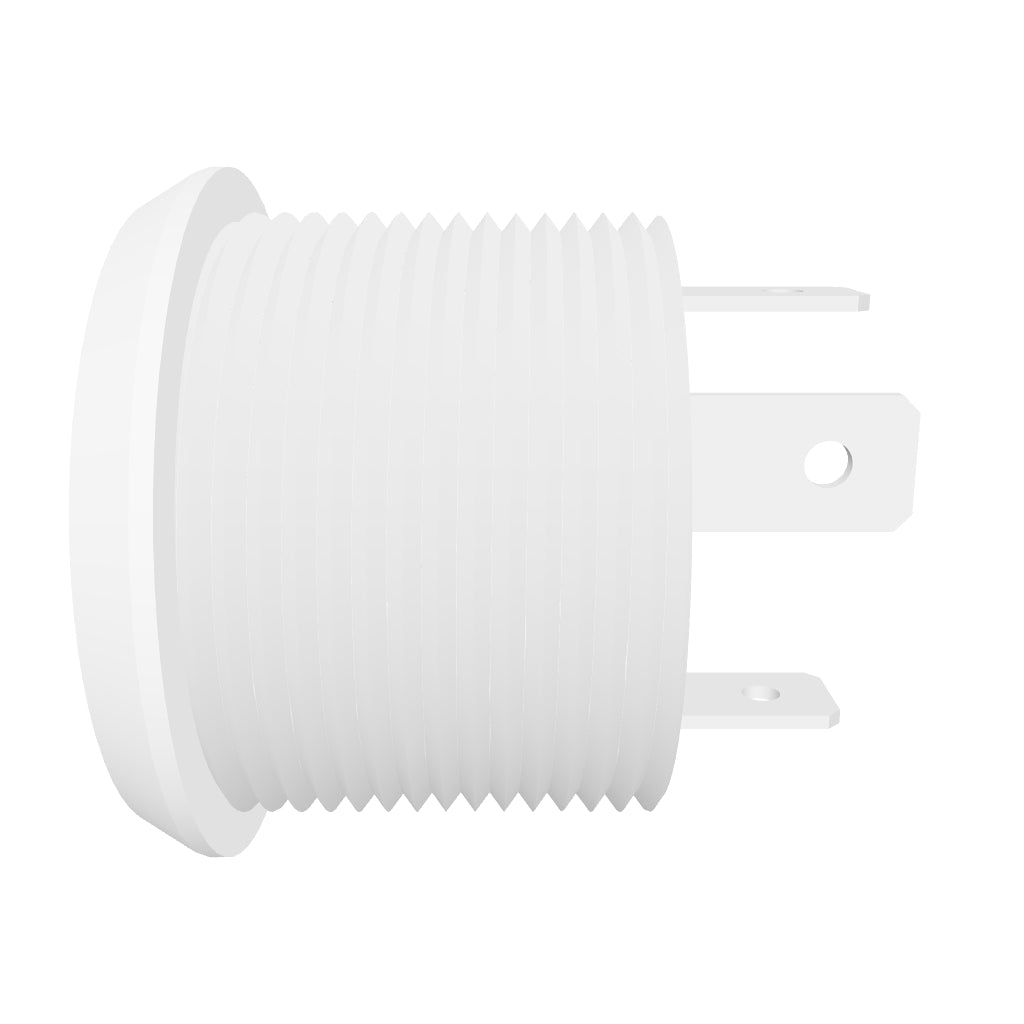

The standard series are based on the highest piezo technology and are considered as most robust series for industrial applications. The standard buzzers use a special shaped membrane (curved edge), which is fixed and glued into the housing. They are shock proof, as well as dust and waterproof (IP67). The different standard models cover a wide range of applications, offering functions such as continuous, intermittent, sweep and warbler, with a sound output more than 100 dB(A).
Specifications
| Mounting Type | Panel Mount |
| Terminals | Fast On ''.250 |
| Operating Voltage Min. | 5V |
|
Operating Voltage Min.
|
35V |
| Sound Level | 77dB |
| Frequency (+/- 15%) | 2500 HZ |
| Pulse rate (Hz) | 5 |
| Operating Current ( mA) @V min. | 1.4 |
|
Operating Current ( mA) @V min.
|
12.5 |
| Drive Type | Internal |
| Tone Type | Multifunctional |
| Color | Grey |
| Diameter | 36.5 mm |
| Operating Temperature | -40°C to +85°C |
Measurements are made @ 1 meter@12Vdc in free air 21°C
