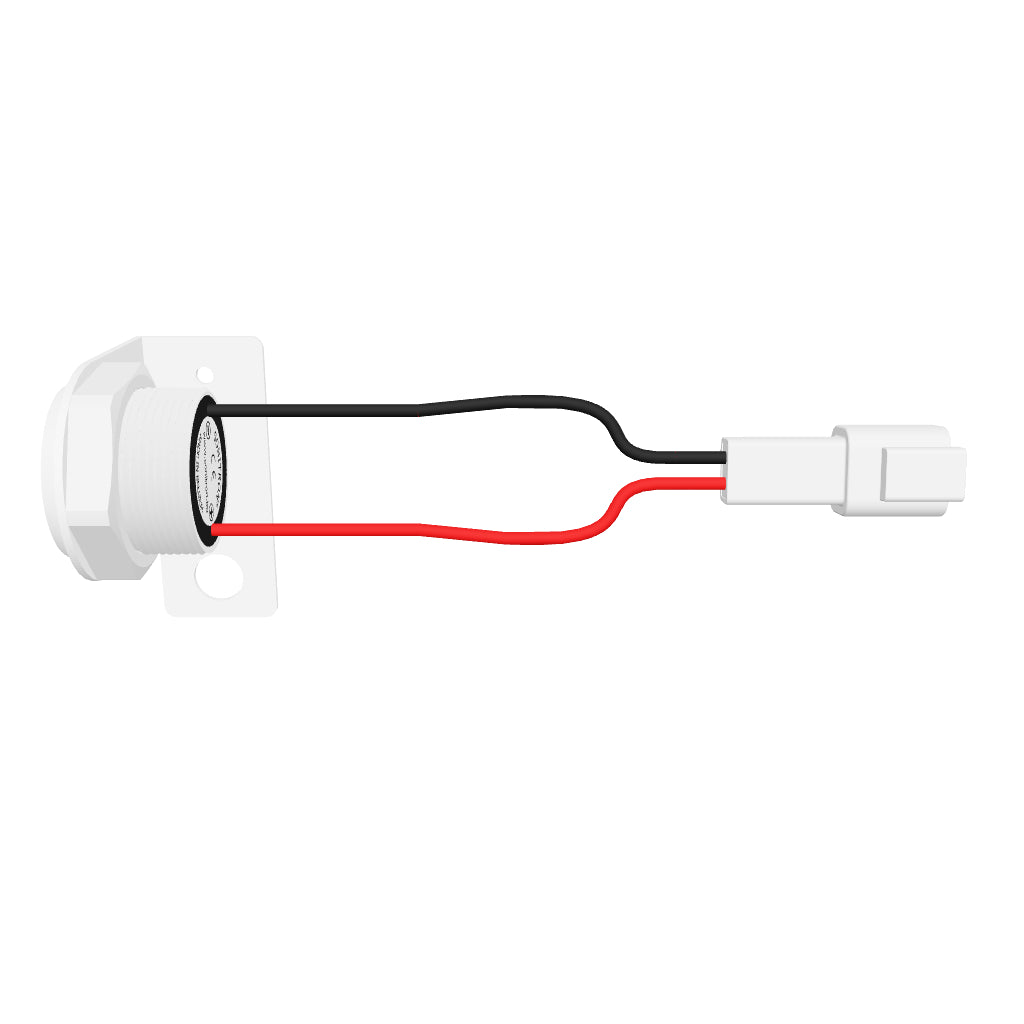

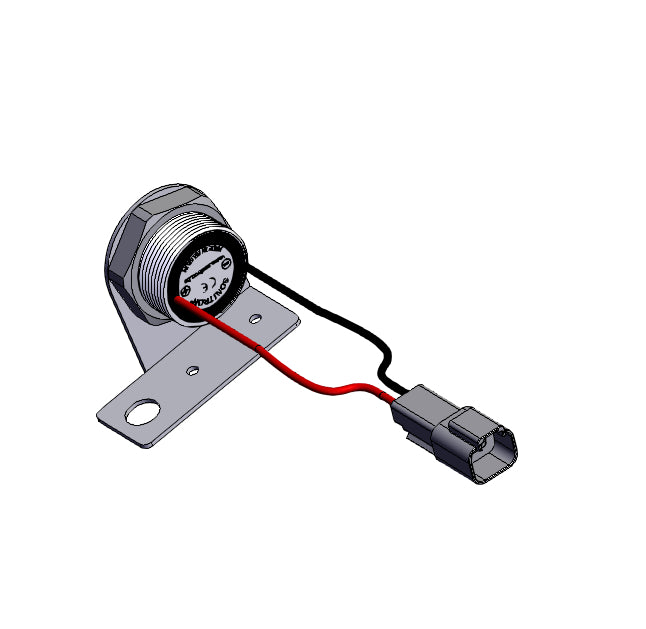

The Sonitron Vehicle Control standard series are a total solution for vehicle move control. The construction is based on the standard series with a long life time and ruggedized housing. A stainless steel mounting bracket, solid connection wires and industrial - automotive rugged connector secures all the mechanical strength you need. This total package is designed for direct use on 12V or 24V car battery with an internal trigger function to avoid unwanted activation.
Specifications
Function
|
Intermit. |
| DC Battery |
12V |
Activation Trigger-on
|
7.5V |
|
Frequency (+/- 15%)
|
2500 Hz |
| SPL db (A) @1m |
90 |
| Pulse rate (Hz) |
1 |
Operating Temperature
|
-40°C to +85°C
|
|
Storage Temperature
|
-40°C to +85°C
|
Life Time ( @ 21'C )
|
@12Vdc min. 2000 hours Continuous. use |
| Case Material |
ABS ( UL rating: 94 HB )
|
Standard color of case
|
Grey |
| Max Voltage |
40Vdc |
| Current consumprion |
15mA |
Measurements are made @ 1 meter@12Vdc in free air 21°C
Advantages:
- Up to 40Vdc
- Designed for battery applications 12V/24V
- Life time > 2000 hours
- Lower power consumption
- Wrong polarity protected
- SS-304 mounting bracket
- Deutch Connector & 16 AWG wires
- Trigger-on function ( 7.5 V or 15.75V )
- IP67 Dust and Waterproof
- Temperature range -40'C to +85'C
- Shock protection during displacement
Applications:
- Total Vehicle Control for several applicatipons
- Agricultural machinery
- Hoisting crane machinery
- Mining equipment
